Direct mount design eliminates the need for mounting flange

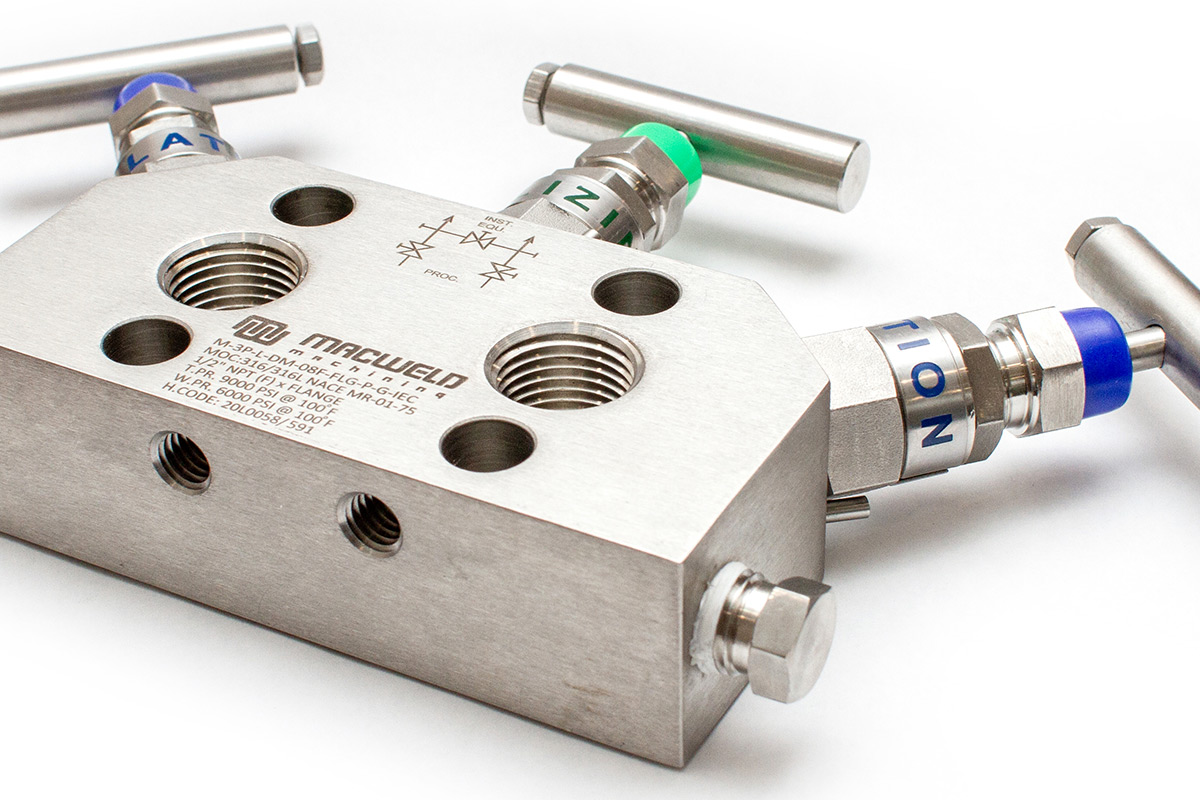

This Low-Profile manifold is a Direct Mount with ½” FNPT inlet & either IEC grooved outlets or in a Rosemount Coplanar style.

Manifolds available in 2, 3 & 5 valve configurations.

For details on our Low Profile Instrument Manifold, please see our product data sheet below.

  • 6000 psig @ 1000 F (414 bar @ 380 C)
  • 316L stainless steel body, stem and trim
  • PTFE Packing, with optional graphoil packing available
  • Other materials available, see factory for details

Mac-Weld Manifold Valve Catalogue

Mac-Weld 2023 Manifold Valve Catalogue

Available in 2,3 & 5 valve configurations, see our catalogue for details.
